Ikbenstil industriële pc i7
Leveringstijd 6-8 dagen Werkdagen
U wilt dit systeem aanpassen? Dat kan. Stuur ons uw wensen via het offerte formulier en wij mailen u zo snel mogelijk een aanbieding::
Offerte aanvragen- Productnr.: IC-6771
Case:Ikbenstil Fanless Case

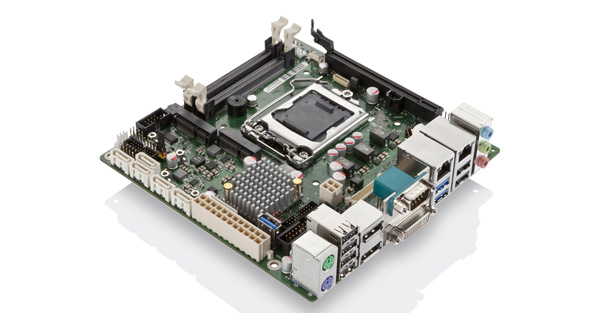

Mobo:Fujitsu D3633-S Q370 chipset, M.2, ITX, 2x LAN, 4x USB3, 4x USB2, 1x DVI-D, 2x DP V1.2
CPU: i7-8700T Hexacore Cores (12 threads per CPU), vPro Ja
VGA: Onboard graphics Ja, Intel® UHD Graphics 630, monitoren 3, 4K: Ja, max resolutie: 4096 x 2304 pixels
RAM: 16GB DDR4 2666 MHz
SSD OS: 250 GB - R/W 3500 MB/s/2300 MB/s - PCI Express 3.0
HDD:
Speciale Kenmerken:
Industriële computers van Ikbenstil onderscheiden zich vooral kwalitatief door de gebruikte componenten en door de flexibele benadering van configuraties. Wij beschikken inmiddels voor elke configuratie over geschikte behuizingen die op zich zelf ook weer modulair zijn opgebouwd met aanpasbare interface modules en andere hardware oplossingen. Wij zien speciaal als normaal en passen de systemen na u wensen en behoeftes aan.
Ikbenstil embedded Industriële box Computer met Core i7 CPU
Ikbenstil industrial computer voor zware toepassingen of zwaar multithreaded werk. Industriële PC''s worden ingezet in proces controles en of data-acquisitie maar ook als front-end voor een distributed processing omgevingen. Veelvoorkomend gebruik:
Survey, ATM, Automation, Medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation , Panel systems
Technische omschrijving: De Ikbenstil embedded industrial box pc beschikt over het Q370 chipset in combinatie met de Core i7-8700T 6 Core CPU die een maximale snelheid van 4.00 GHz heeft. Het systeem is met 8 GB DDR4 2666 MHz RAM uitgerust dat tot maximaal 32 GB uitgebreid kan worden. OS en programmas worden op een M.2 250GB PCIe SSD met een R/W snelheid van 3500 MB/s/2300 MB/s geinstalleerd. De totale afmeting van het systeem is: 262 x 88 x 237 mm (BxHxT)
Interne aansluitingen:
SO DIMM Sockets (DDR4 2666) = 2
D3633-S PCI Express x16 (Gen3) / Support for lane split (8+8 or 8+4+4) = 1 / ja
mSATA / Mini PCI Express Slot (halfsize / fullsize, incl.USB 2.0) = - / 1
SATA-600 / M.2 SSD 2280 (supports 2280/2260/2242, Key-M, PCIe/NVME) = 4 / 1
S/PDIF (digital Audio) OUT / IN = 1 / 0
Front Panel Audio (9-Pin, HD Audio) = 1
USB 2.0 / USB 3.1 (Gen1) / USB 3.1 (Gen2) / USB 3.1 (Gen2) Stick = 1 / 1 / - / 1
Serial (COM2, RS-232 / RS-422 / RS-485) / Parallel Port Connector = 1 / -
LVDS / LVDS Backlight (PWM controlled) / Embedded DisplayPort = 1 / 1 / 1
FAN PSU / CPU / AUX1 / AUX2 = 0 / 1 / 1 / 0
Intrusion (Case Open) / GPIO (8Bit) / SMBus (Case Temp.) = 1 / 1 / -
Front Panel (Power Switch, Reset Switch, LEDs, Intel 10 pin compatible) = 1
ATX Power Supply (24 pin + 4 pin) / single 12V PSU = 1 / 1
Externe aansluitingen:
VGA Sub D / DVI-I / DVI-D / DisplayPort V1.2: -/ -/ 1 / 2
D3633-SAudio Mic. In / Line in / Line out (or driver configuration): -/ 1 / 1
LAN (RJ-45): 2
PS/2 Mouse / Keyboard 1 / 1/br> >USB 2.0 / USB 3.1 Gen1 / USB 3.1 Gen2: 4/ 2/ 2
Serial (COM1, RS232): 1
Ontworpen voor industriële toepassingen:
Longlife components, Designed for 24/7 use in industrial applications, Revision control, Strict control and pre-announcement, Extended lifecycleup to 6 years, Mainboard available for more than fiveyears, Industrial grade EMI immunity, Enhanced operating temperature range (0°C-60°C)
|
